TA #2 — Selenium Grid and Docker

6 min readJan 2, 2020

[TA] — Test Automation article series

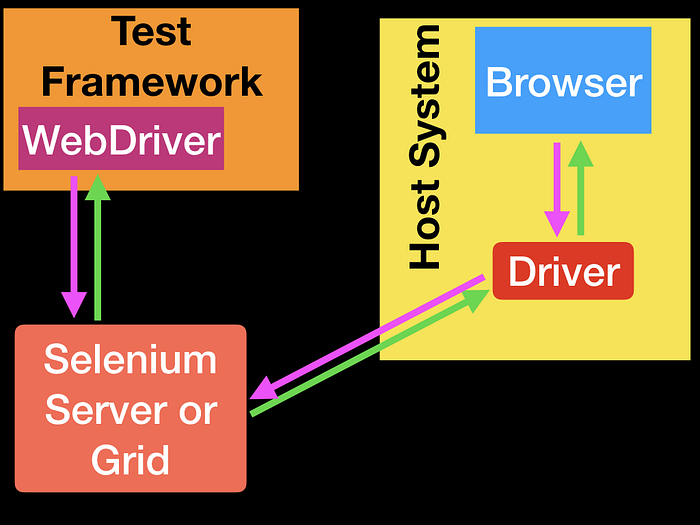

Selenium Grid is a smart proxy server that allows Selenium tests to route commands to remote web browser instances. Its aim is to provide an easy way to run tests in parallel on multiple machines.

Why Selenium Grid?

Central entry point for all tests
Management and control of the nodes/environment where the browsers run
Scale UI testing infrastructure
Shorter execution times for test suites (you still need good tests!)
Enable running tests in parallel
Cross-platform testing
Load balancing

Components of a Grid

A Hub is a central point where all your tests are sent. Each Selenium Grid consists of exactly one hub. The hub will connect one or more nodes that tests will be delegated to.

Nodes are different Selenium instances that will execute tests on individual computer systems. There can be many nodes in a grid.

When to use Grid

Generally speaking, there’s two reasons why you might want to use Grid.

To run your tests against multiple browsers, multiple versions of browser, and browsers running on different operating systems.
To reduce the time it takes for the test suite to complete a test pass.

One of the reasons is to boost the time spent running the suite is to shorten the turnaround time for test results after developers check-in code for the AUT to give feedback as quickly as possible.

Main Concepts

Isolation

Performance tends to degrade when resources are shared
- Unreleased browser sessions
- Temporal files not deleted
- Browsers tend to share some memory locations
Processes should run independently, ideally in containers
Most known tools: QEMU, VirtualBox, Docker, VMWare

Performance Monitoring

Resources are not unlimited (most of the time)
How many tests can we run in parallel?
How much RAM and CPU do we have?

How much RAM and CPU? How many tests in parallel? How many teams?

Isolate browsers when possible.
Rule of thumb, one CPU and one GB of RAM per browser.
There is not a unique answer

Good Concepts to Follow

Stability -> Speed -> Coverage

Stability
1. Use Linux when possible and acceptable
2. Try to run 1 test per host (container/VM) at a time
3. Save your configuration in Git and manage it with Puput/Chef/Ansible
Speed
1. Use small VMs/Containers for nodes
2. It is better to have 20 small nodes than 1 big one
Coverage
1. Add browsers one by one, depending on your requirements (Chrome and Firefox are the easiest ones to start)
2. More browsers, more versions and platforms to maintain

Docker Selenium

Docker provides a convenient way to provision and scale Selenium Grid infrastructure in a unit known as a container. Containers are standardised units of software that contain everything required to run the desired application, including all dependencies, in a reliable and repeatable way on different machines.

The Selenium project maintains a set of Docker images which you can download and run to get a working grid up and running quickly. Nodes are available for both Firefox and Chrome. Full details of how to provision a grid can be found within the Docker Selenium repository.

Prerequisite

The only requirement to run a Grid is to have Docker installed and working. Install Docker.

Docker

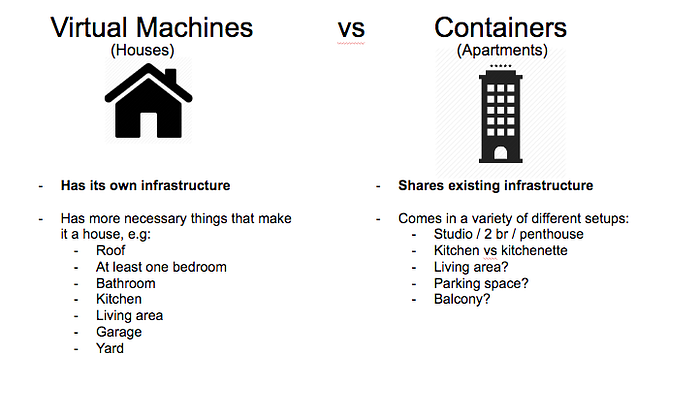

VMs (are houses) vs Docker Container (are apartment)

Why a Selenium Grid with Docker?

Simplifies setup and teardown. A complete environment can be built from scratch in seconds.
It becomes OS agnostic, it can run in any operating system where Docker is installed
Simplifies scaling nodes up and down
Portability
Boosts CI reliability
1. With each run, a new Grid can be built
2. Clean environment
3. No pollution from previous tests

Example with Java and Maven

Let’s try it, download and unzip the Selenium-grid-test project.

We will use docker-compose to start out selenium hub, nodes, and application containers to run together.

# To execute this docker-compose yml file
# use `docker-compose -f docker-compose.yml up --build --abort-on-container-exit --scale chrome=2 --scale firefox=2`
version: "3"
services:
  firefox:
    image: selenium/node-firefox-debug
    volumes:
      - /dev/shm:/dev/shm
    depends_on:
      - hub
    environment:
      - HUB_HOST=hub
    networks: ['selenium-grid']
  chrome:
    image: selenium/node-chrome-debug
    volumes:
      - /dev/shm:/dev/shm
    depends_on:
      - hub
    environment:
      - HUB_HOST=hub
    networks: ['selenium-grid']
  hub:
    image: selenium/hub
    ports:
      - "4444:4444"
    networks: ['selenium-grid']
  tests:
    image: tests:1.0
    build:
      context: ./
      dockerfile: ./Dockerfile.dockerFile
    depends_on:
      - hub
    volumes:
      - ./.gradle:/root/.gradle
    command: ["./wait-for-grid.sh", "./gradlew clean test --tests GoogleSearchTest"]
    networks: ['selenium-grid']
networks: {selenium-grid: {}}

To start:

docker-compose -f docker-compose.yml up --build --abort-on-container-exit --scale chrome=2 --scale firefox=2

To teardown:

docker-compose -f docker-compose.yml down

Head to http://localhost:4444/grid/console and check our Selenium Grid powered by Docker Compose!

What if the Grid is not ready before tests run?

A smoke test on the Grid before running tests

Wait for it…

#!/bin/bash
# wait-for-grid.sh

set -e

cmd="$@"

while ! curl -sSL "http://hub:4444/wd/hub/status" 2>&1 \
        | jq -r '.value.ready' 2>&1 | grep "true" >/dev/null; do
    echo 'Waiting for the Grid'
    sleep 1
done

>&2 echo "Selenium Grid is up - executing test"
exec $cmd

Selenium Grid in a CI with Jenkins

We will use a custom Jenkins image

The Dockerfile for this image is the following one:

FROM jenkins/jenkins:lts
USER root
RUN apt-get update \
    && apt-get install -y sudo curl\
    && apt-get install -y libltdl7\
    && rm -rf /var/lib/apt/lists/*
RUN echo "jenkins ALL=NOPASSWD: ALL" >> /etc/sudoers

# getting the docker-cli
RUN curl -fsSL get.docker.com -o get-docker.sh
RUN sudo sh get-docker.sh

# Installing docker-compose
RUN sudo curl -L https://github.com/docker/compose/releases/download/1.25.0/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose
RUN sudo chmod +x /usr/local/bin/docker-compose
USER jenkins

# Installing Git plugin. See: https://github.com/jenkinsci/docker#preinstalling-plugins
RUN /usr/local/bin/install-plugins.sh git:3.9.4

And configured docker-compose file

# To execute this docker-compose yml file
# use `docker-compose -f jenkins-docker-compose.yml up --build --abort-on-container-exit`
version: "3"
services:
  jenkins_executor:
    build:
      context: ""
      dockerfile: JenkinsDockerFile.dockerFile
    labels:
      kompose.service.type: nodeport
    networks: ['jenkins']
    ports:
     - '8080:8080'
    volumes:
         - jenkins_home:/var/jenkins_home
         - /var/run/docker.sock:/var/run/docker.sock
networks: {jenkins: {}}
volumes:
  jenkins_home:

Starting Jenkins (new terminal)

Command:

docker-compose -f jenkins-docker-compose.yml up --build

Getting Jenkins admin’s password from the log output

Head to http://localhost:8080/ and enter the password obtained above for the user admin.

Create Jenkins Job

Click on create new jobs
Enter the project name (e.g. docker-compose-test ), select Freestyle project and click OK
On Source Code Management, select Git and enter https://github.com/naz1719/Simple-grid-test.git as Repository URL
On the configuration page, click Add build step, then Execute shell
In the command box enter

sudo docker-compose -f docker-compose.yml up --build --abort-on-container-exit --scale chrome=3 --scale firefox=3

Click Save and Build Now
Finally, click the job console output

P.S Ability to see the execution of UI test

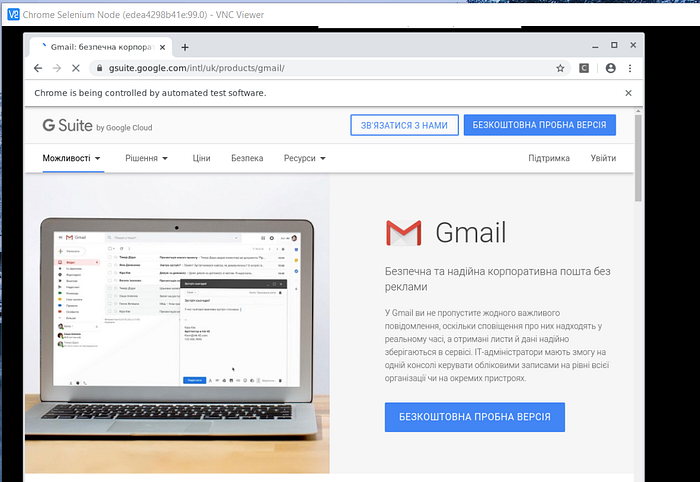

We can see execution using f.e node-chrome-debug image by VNC Viewer

chrome:
  image: selenium/node-chrome-debug
  volumes:
    - /dev/shm:/dev/shm
  ports:
    - "5556:5900"
    # pwd to VNC Server : secret
  depends_on:
    - hub
  environment:
    - HUB_HOST=hub
  networks: ['selenium-grid']

I’ve added port
